Superwool® Plus | Alkaline earth silicate fibre mats
Superwool® Plus Blankets offer the same benefits as the other products in the Superwool fibre family, but with improved handling strength and optimised thermal properties.
- Thickness (mm)
- 6mm | 10 mm | 13mm | 19mm | 25mm | 38mm | 50mm
- Density / volume weight (kg / m³)
- 64 kg / m³ | 96 kg / m³ | 128 kg / m³ | 160 kg / m³
-
Insulation properties
Exceptional insulation properties.
Temperature resistance
High temperature resistance up to 1200 °C.
Temperature change
Highly resistant to temperature changes.
PRODUCT TYPE
Mats (blankets) made of high temperature wool are needled lightweight mats made of biosoluble (AES) high temperature wool (HTW) and provide an effective solution for a wide range of thermal insulation applications. They are characterized by excellent insulating properties, high resistance to chemicals, elasticity and dimensional stability. They are exclusively inorganic and therefore do not generate smoke or fumes when exposed to heat. They are available in a wide range of densities and thickness combinations, making them one of the most versatile product groups on the market.
MATERIAL
Alkaline earth silicate fiber high temperature wool (AES Alkaline Earth Silicate Wool) consist of a mix of amorphous fibers, which are melted and then rapidly solidified using a combination of silica SiO2 and calcium oxide (CaO) with magnesium oxide (MgO) can be produced.
Application
Ceramic and glass industry
- Float glass preheating and start-up hoods
- Glass casting molds
- Tunnel kiln expansion joints
- Bogie hearth furnace for sanitary ceramics: roof and wall insulation
- Roller hearth furnaces: back lining, roller fillings, and expansion joints
- Applications in automotive glazing systems
Metal industry
- Annealing furnace doors
- Insulation of ladle side gates
- General thermal insulation
- Repairs of coke ovens
- Reheating furnace lining
- The lining of melting/holding furnace doors
- Manifold cover and slide
- Jacket pipe seal
Consumer goods industry
- Chimney insulation gas fireplaces
- insulation of oven casings
- Insulation for boilers and water heaters
Morgan Thermal Ceramics
Morgan's development of low biopersistence fibers has led to a revolution in the use of fibers for high temperature insulation applications over the last 20 years. Our patented Superwool products, manufactured using ISO 9002 certified processes, are made from alkaline earth silicate (AES) composition fibers uniquely engineered to provide benefits in high temperature insulation applications.
Product Variations

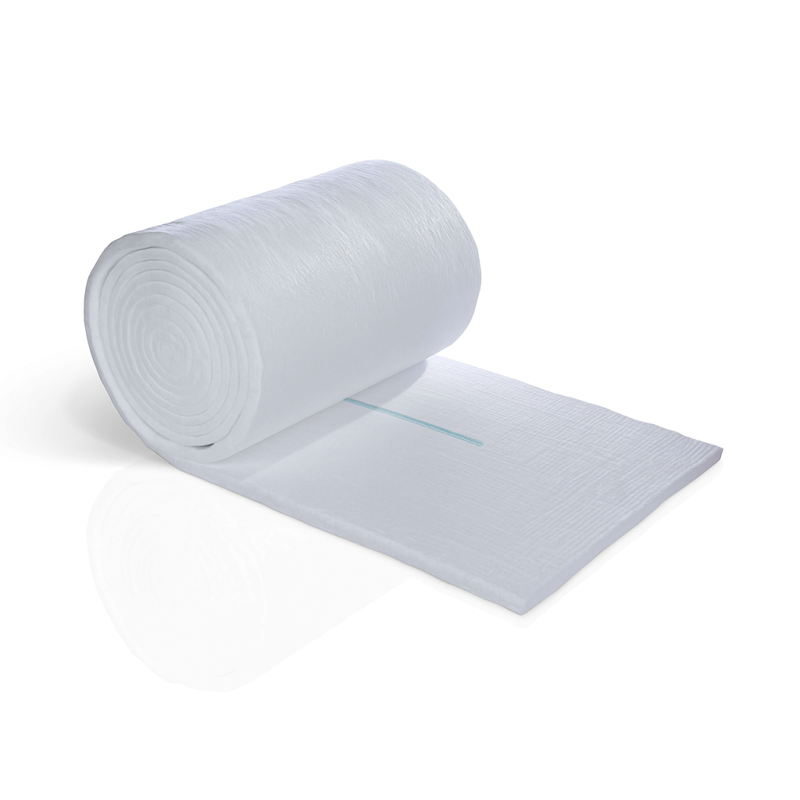

Roll goods
Fiber mats are sold as roll goods as standard. The roll length depends on the selected thickness. As a standard width, we have 610mm wide rolls from stock. Double widths are available on request.
More
Moldings
We manufacture molded parts according to your specifications. The roll goods are shaped via:
- Water jets
- Punching
- Plotting
Fiber modules
We manufacture fiber modules according to customer specifications that are designed for the insulation requirements of industrial ovens, kilns and heating devices.
MoreTECHNICAL DETAILS
Chemical Analysis
SiO2 62,0 - 68,0 % CaO 26,0 - 32,0 % MgO 3,0 - 7,0 % Others < 1,0 % Physical Properties
Colour White Classification Temperature (°C) 1200 Operating Temperature (°C) 1050 Melting point (°C) 1325 linear shrinkage (% after 24h)
1200 °C 1,0 Density 64 kg/m³ 80 kg/m³ 96 kg/m³ 128 kg/m³ 160 kg/m³ Thermal conductivity at 200°C 0,06 W/m°K 0,06 W/m°K 0,05 W/m°K 0,05 W/m°K 0,04 W/m°K 400°C 0,11 W/m°K 0,09 W/m°K 0,09 W/m°K 0,08 W/m°K 0,07 W/m°K 600°C 0,15 W/m°K 0,15 W/m°K 0,14 W/m°K 0,12 W/m°K 0,11 W/m°K 800°C 0,24 W/m°K 0,22 W/m°K 0,21 W/m°K 0,18 W/m°K 0,16 W/m°K 1000°C 0,36 W/m°K 0,31 W/m°K 0,29 W/m°K 0,25 W/m°K 0,23 W/m°K Tensile strength (kPa) 30 45 50 75 90 CHARACTERISTICS
Superwool® Plus Blankets offer the same benefits as the other products in the Superwool fibre family, but with improved handling strength and optimised thermal properties. Superwool® Plus Blankets are produced from pure raw materials using a new manufacturing technique. In addition to the optimized thermal properties, the larger nuisance dust particles have been effectively eliminated, making the product soft to the touch and less irritating to the skin during use. Superwool® Plus Blankets are made from long Superwool® Plus fibres. Superwool® Plus Blankets have excellent thermal stability and retain their original soft fibrous structure up to the maximum continuous use temperature. Superwool® Plus Blankets are needled from both sides and exhibit high strength both before and after heating. Superwool® Plus Blankets contain no binder or lubricant and do not emit fumes or odor when first heated. Superwool® Plus Blankets are pliable, easy to cut and shape, and easy to install. (CAS number: 329211-92-9).
Benefits
- Contains no binder or lubricant
- Thermal stability
- Low heat storage
- Good tear resistance
- Flexible and elastic
- Immune to thermal shocks
- Good sound absorption
- Exempt from any classification as carcinogenic according to Note Q of Directive 97/69/EC.
-
