Aspen Aerogel ®

The solids in silica aerogels have low conductivity and consist of very small, three-dimensional, intertwined clusters that make up only 3 % of the volume.


TEMPERATURE RESISTANCE
Up to 650°C
MATERIAL
Aerogel
PRODUCT TYPE
Aerogel
Types
Pyrogel® HPS | Pyrogel® XTE | Pyrogel® XTF | Cyrogel® Z | Cyrogel® x201

Refractory Refractory

Tags: Aerogel

Share:

  • Icon box checked

    Thermal power

    Superior thermal performance, savings in logistics.

    Icon box checked

    Reduced thickness

    Reduced thickness and profile - Physically robust and impact resistant.

    Icon box checked

    Environmentally safe

    Ecologically safe, hydrophobic and yet breathable.

    Aspen Aerogel ®
    Aspen Aerogel ®
    Aspen Aerogel ®

    Manufacturer

    Aspen Aerogels ® is the world's leading manufacturer of airgel blankets and has pioneered the development of this technology in the industrial marketplace since 2001. The Pyrogel® and Cryogel Z® insulation is now widely accepted and adopted as the benchmark standard for airgel technology. Aspen's aerogel insulation is up to five times more effective than traditional insulation materials. The materials offer space-saving, easy-to-use solutions over a wide temperature range, making them the most efficient industrial insulation on the market.

    Product types

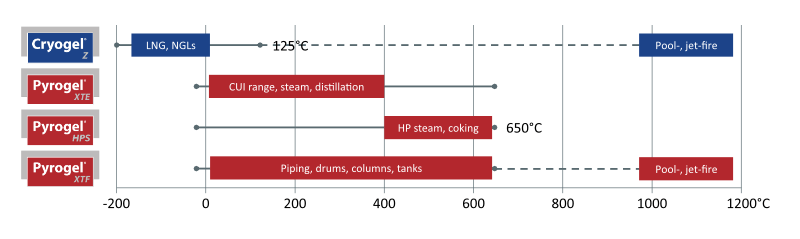

    Produkt Dicke (mm) Wärmeleitfähigkeit (mW/m-K) Max. Temp. (°C) Anwendung

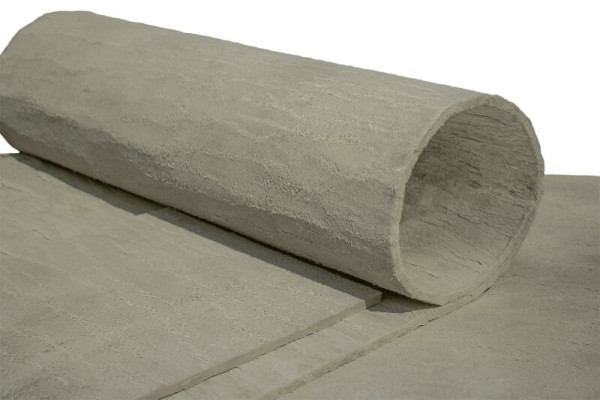

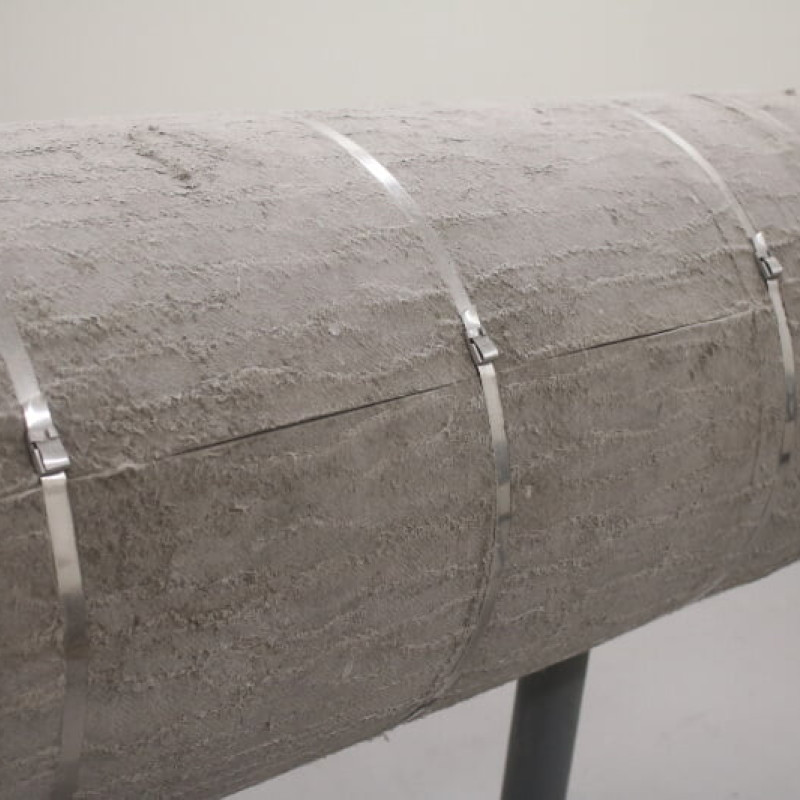

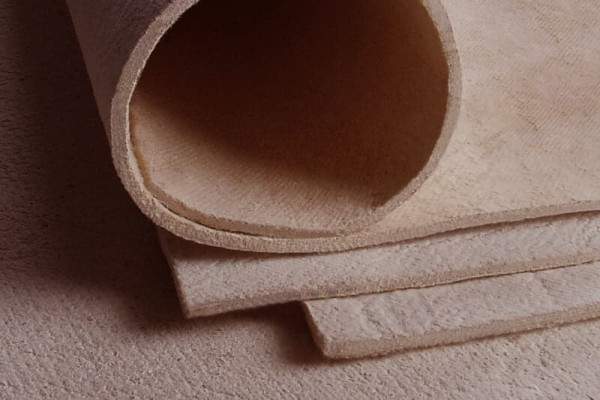

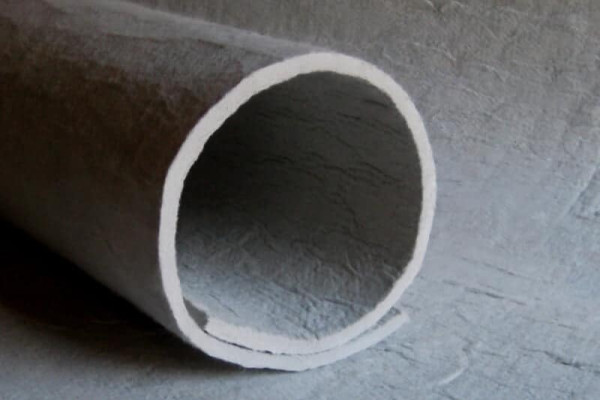

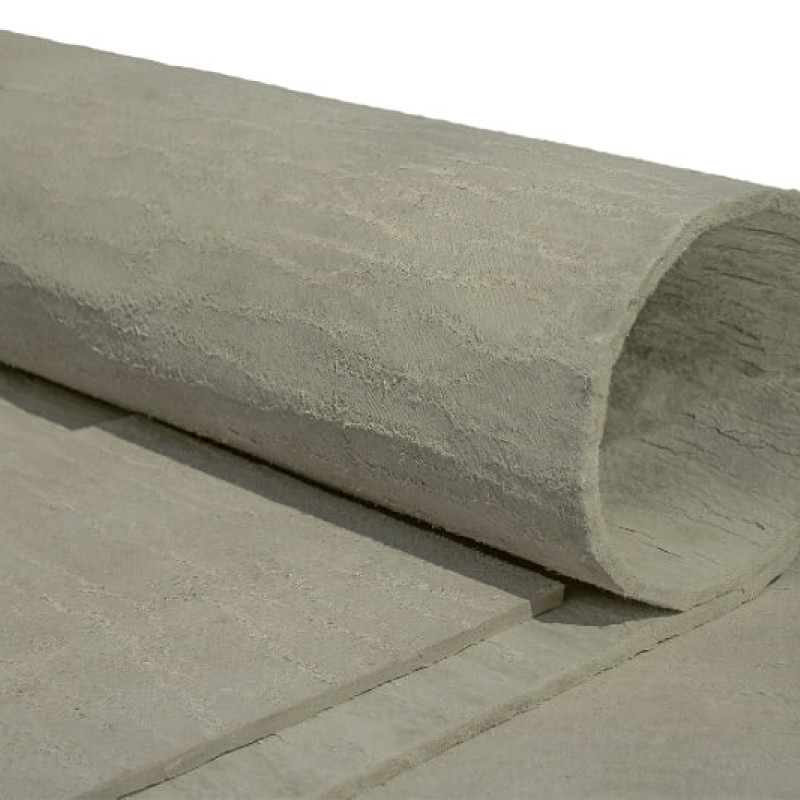

    Pyrogel® HPS ASTM C1728 10 22 650 Optimized for high temperature hydrocarbon & chemical processing, steam pipes, vessels and equipment, gas and steam turbines, removable blankets
    Pyrogel® XTE ASTM C1728 5 10 22 650 CUI defense, medium to high temperature processes, pipes, vessels and equipment, district energy steam networks, Aerospace and defense systems
    Pyrogel® XTF 10 22 650 Passive “pool fire” and passive “jet fire” protection for industrial and commercial applications, relief system sizing (API 521)

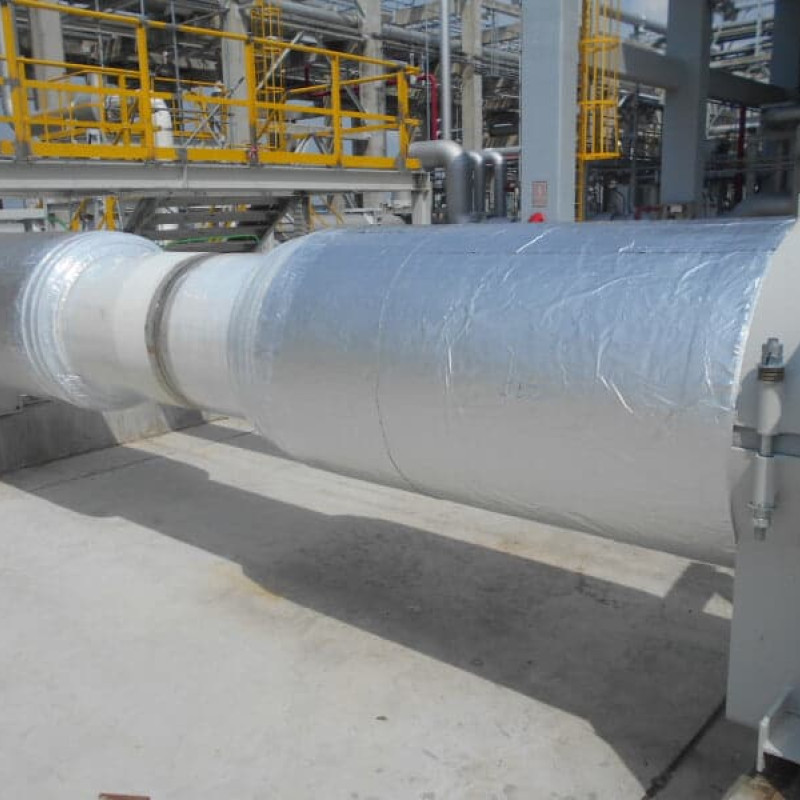

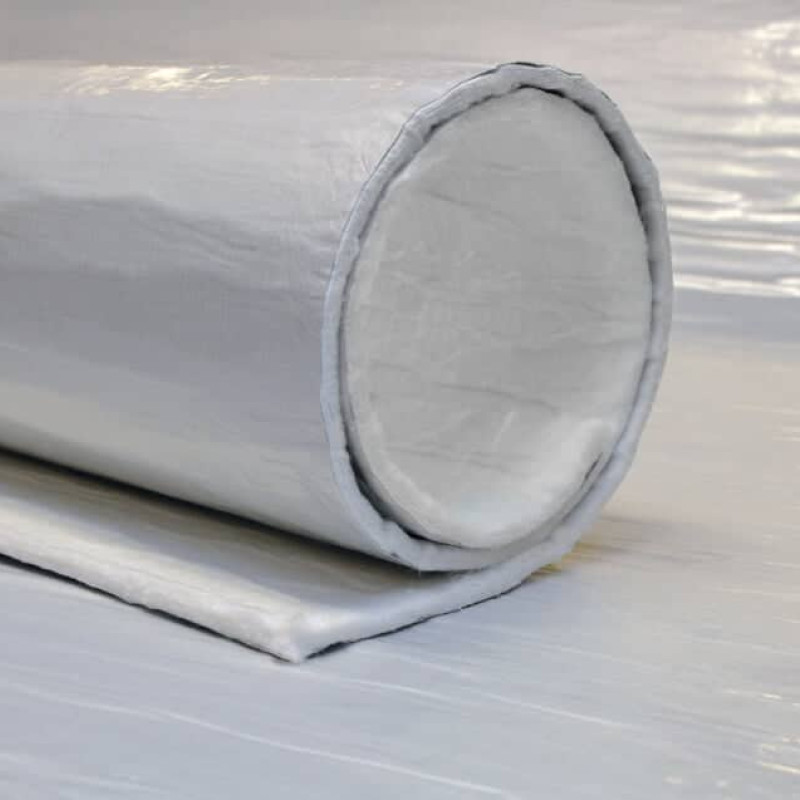

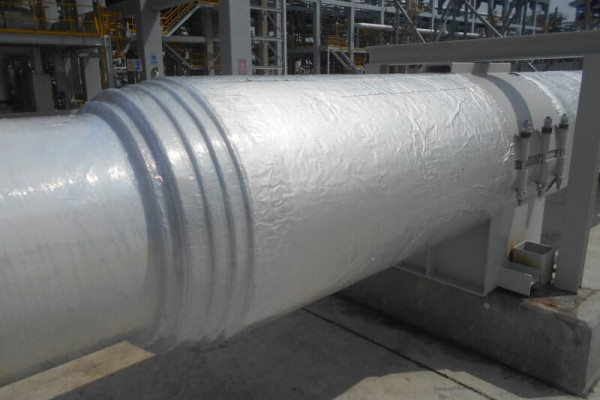

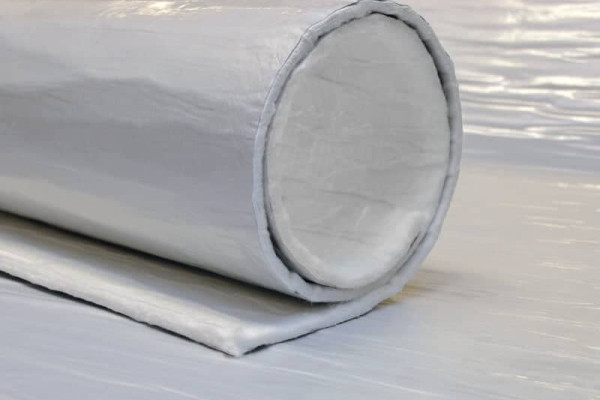

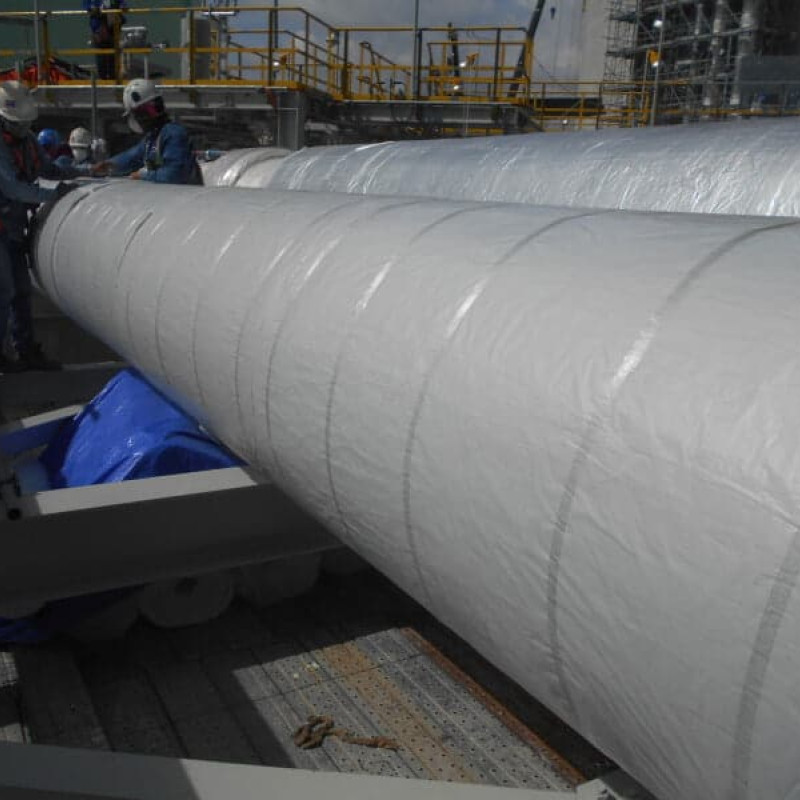

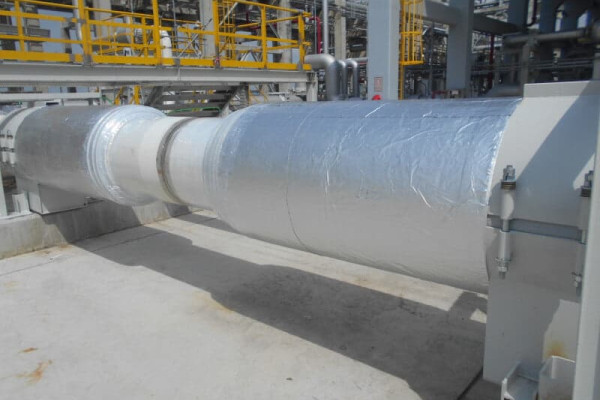

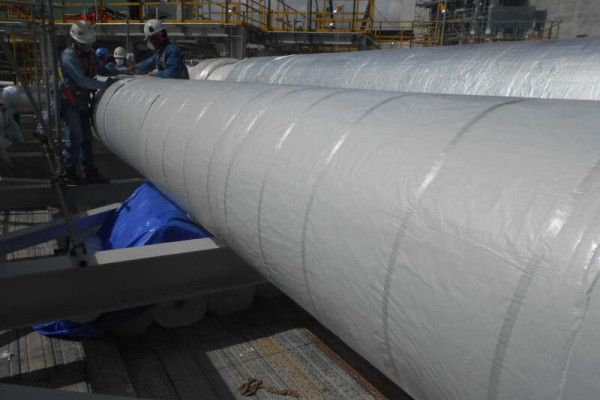

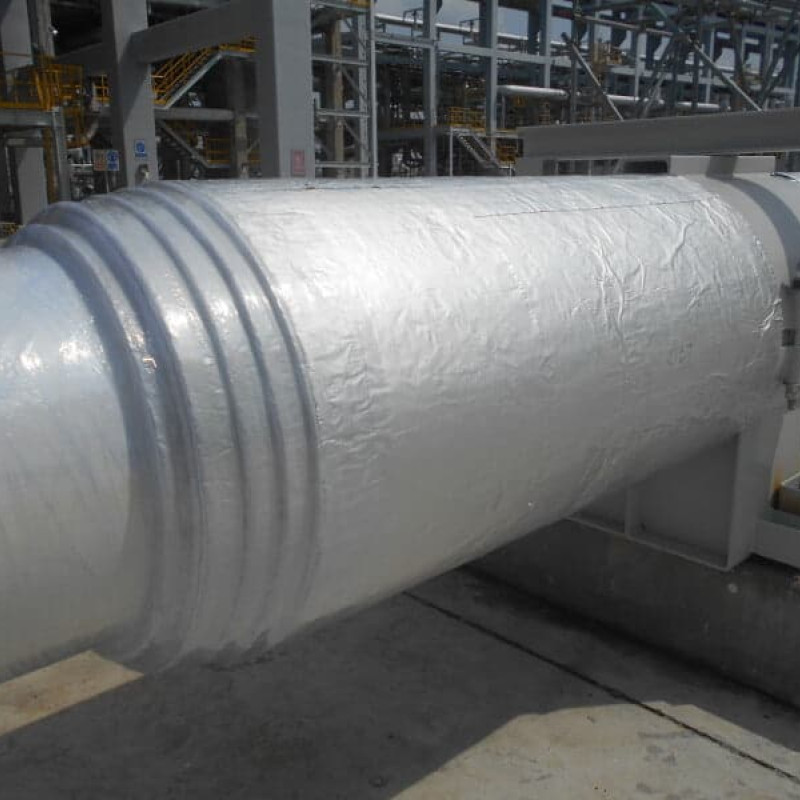

    Cyrogel® Z ASTM C1728 5 10 17 120 Sub-ambient and cryogenic pipelines, vessels and equipment, gas liquefaction & re-gasification facilities
    Cyrogel® x201 5 10 17 200 Sub-ambient including refrigerated appliances, cold storage and aerospace
    Aspen Aerogel ®

    About the material

    The aerogel part of our high performance insulation blankets is comprised of synthetic amorphous silica (SAS). The other major ingredient in our products is a non-woven, needled batting comprised of either E-glass fibers or a blend of polyester (PET) fibers and E-glass fibers. Synthetic amorphous silica has been produced for more than 100 years for a variety of uses (adsorbents, fillers, anti-caking agents) and consumer products (toothpaste, cosmetics, food, animal feed).

    The US EPA recently listed synthetic amorphous silica as a chemical on the Safer Chemical Ingredient List, part of the Safer Choice program. The Safer Chemical Ingredients List (SCIL) is a list of chemical ingredients that the Safer Choice Program has evaluated and determined to be safer than traditional chemical ingredients.

    Material development

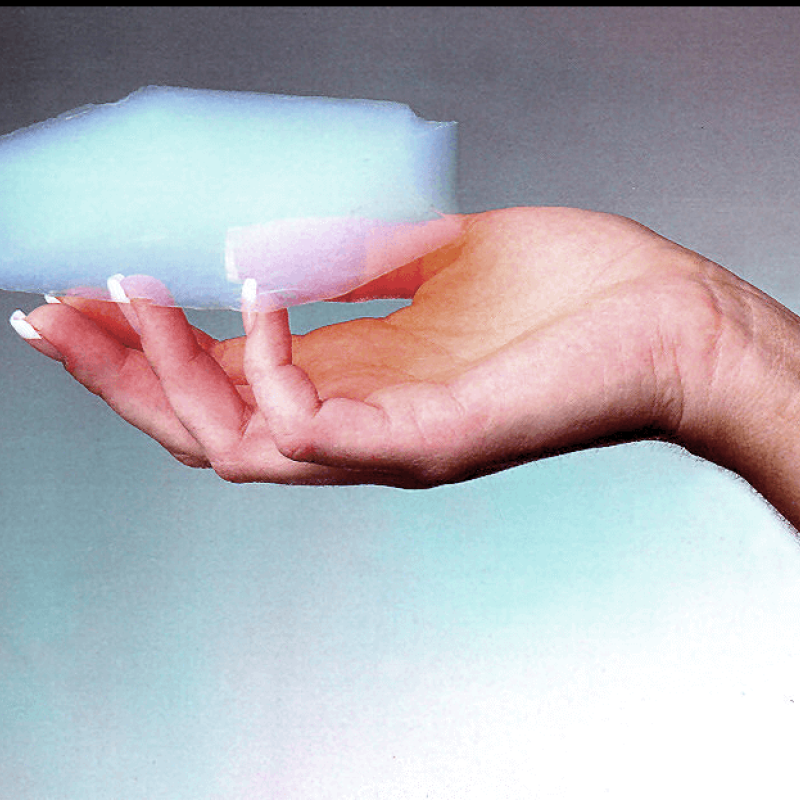

    Aerogels have been in existence for more than 80 years. Invented in 1931 by Dr. Samuel Kistler at the College of the Pacific in California, silica aerogel is a lightweight solid derived from gel in which the liquid component of the gel has been replaced with gas. When the liquid is removed, what remains is “puffed-up sand," with up to 99% porosity. The result is an extremely low density solid with several remarkable properties, most notably its effectiveness as a thermal insulator. Aerogels also have value in emerging applications such as energy storage, filtration and carbon capture.

    Safety instructions

    Synthetic amorphous silica is oleophilic, so it readily absorbs the oils from your skin. This characteristic is why synthetic amorphous silica is used in cosmetics as an anti-sheen agent. For worker comfort when working with Pyrogel®, Cryogel® or Spaceloft®aerogel blanket insulation, we recommend safety eyewear, work gloves, long sleeves, and long-legged work clothes. Respiratory protection is recommended if dust exposures exceed occupational exposure limits. Aerogel dust is easily washed from the skin and clothing using soap and water.

    • Aspen Aerogel ®
    • Aspen Aerogel ®
    • Aspen Aerogel ®
    • Aspen Aerogel ®
    • Aspen Aerogel ®
    • Aspen Aerogel ®
    • Aspen Aerogel ®
    • Aspen Aerogel ®
    • Aspen Aerogel ®

      Characteristics

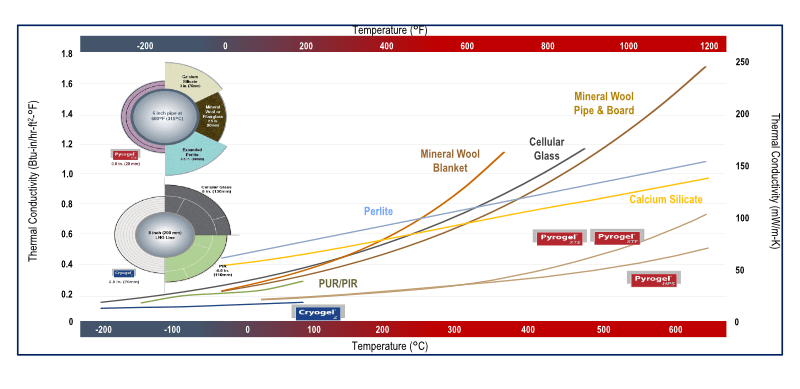

      The solids in silica aerogels have low conductivity and consist of very small, three-dimensional, intertwined clusters that make up only 3 % of the volume. The conductivity through the solid is therefore very low. The remaining 97 % of the volume of the aerogels consist of air in extremely small nanopores. The air has little room to move, which hinders both convection and gas phase conduction. These properties make aerogels the lowest density solid and the most effective thermal insulator in the world. After many decades as a laboratory curiosity, Aspen Airogels has successfully developed a technically and economically feasible form of airgel for industrial and building insulation applications.

      Benefits

      • Superior thermal performance
      • Reduced thickness and profile
      • Less time and labor for installation
      • Reusable - lower lifetime costs
      • Physically robust and impact resistant

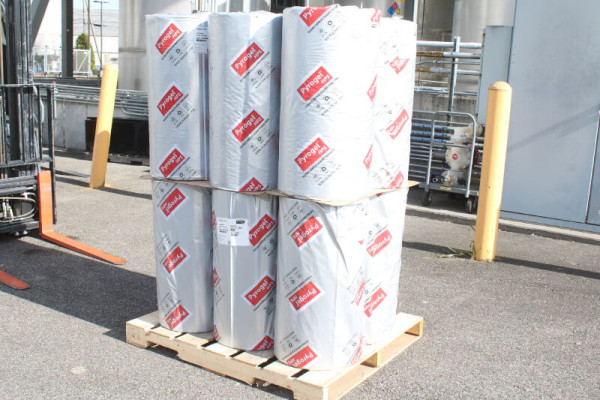

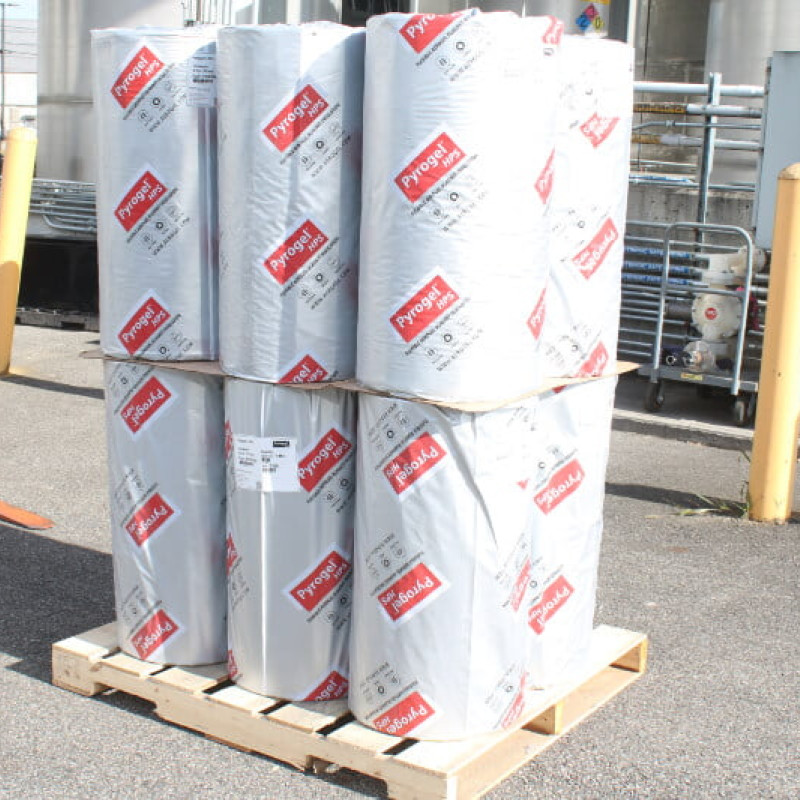

      • Logistics savings - time and money
      • Simplified inventory
      • Hydrophobic yet breathable
      • Environmentally safe
    • Downloads

      Datasheet Pyrogel® HPS

      Product properties, typical applications and availabilities.

      Download

      Datasheet Pyrogel® XTE

      Product properties, typical applications and availabilities.

      Download

      Datasheet Pyrogel® XTF

      Product properties, typical applications and availabilities.

      Download

      Datasheet Cyrogel® Z

      Product properties, typical applications and availabilities.

      Download

      Hoffmann product catalog

      Refractory | Seals | Foundry supplies | Conveyor chains | Chesterton

      Download

    • K. Hoffmann GmbH

      K. Hoffmann GmbH

      Since 1986, K. Hoffmann GmbH has been at home as a production company in the high-temperature sector. Specializing in vermiculite as the main material, we offer board products and shaped parts as mass-produced and cost-oriented quality goods, as well as complex custom-made products for industrial and home use for thermal insulation and fire protection technology!

      As part of the SENN Group, we have access to a broad network of specialized companies and their associated experience and products, enabling us to meet every requirement!
